MARSTEK CT002 Three-Phase Bluetooth Smart Meter – Ref. CT002

MARSTEK CT002 Three-Phase Bluetooth Smart Meter – Ref. CT002 - description

? MARSTEK CT002 Three-Phase Smart Meter – Part No. CT002
✅ Description

The Marstek CT002 is a three-phase smart meter designed to monitor the power consumption of residential and commercial installations in real time. Thanks to its Wi-Fi and Bluetooth connectivity, it allows easy integration with Marstek energy storage systems such as Venus, Jupiter and Saturn, optimizing energy management and self-consumption.

⚙️ Technical characteristics
Supply voltage: 100–260 V AC, 50/60 Hz
Device consumption: < 2 W
Voltage Measurement Range (RMS): 100–260 V
Voltage measurement accuracy: ±1%
Maximum current per phase: 100 A
Current measurement accuracy: ±1% (5–100 A)
Connectivity: Wi-Fi 802.11b/g/n (2.4 GHz), Bluetooth 5.2
Response time: < 10 seconds
Dimensions: 65.4 × 26.5 × 83 mm
Weight: 0.2 kg
Operating temperature: -20 °C to 40 °C

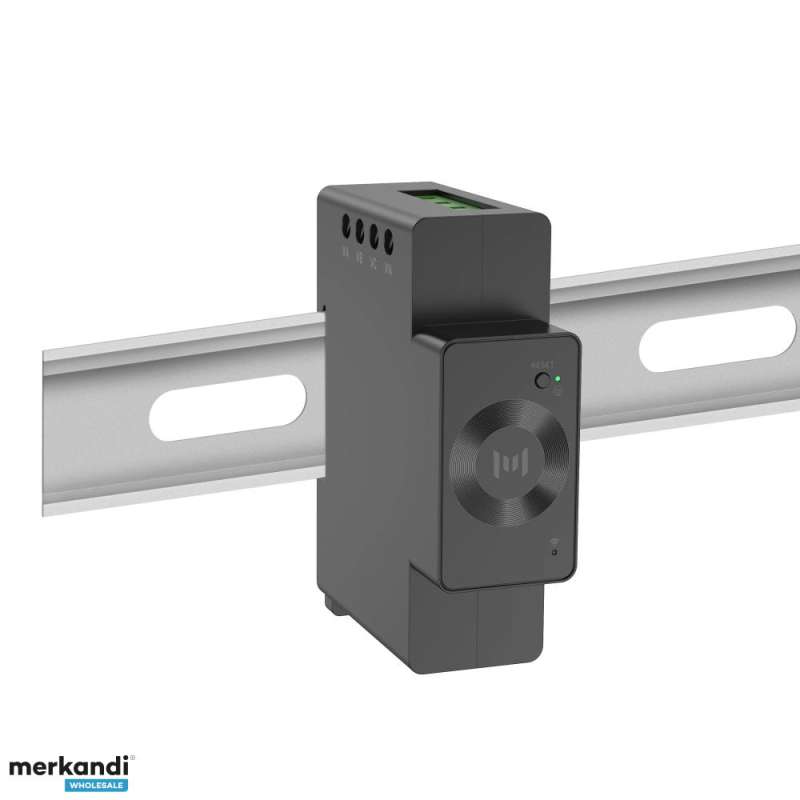

Mounting: DIN rail
Power supply: USB-C (5 V / 1 A)

? Package Contents
1 × CT002 Smart Meter (Model TPM-100CTW)

1 × Current Transformer

1 × User Manual
PVExpress24

? Installation and compatibility

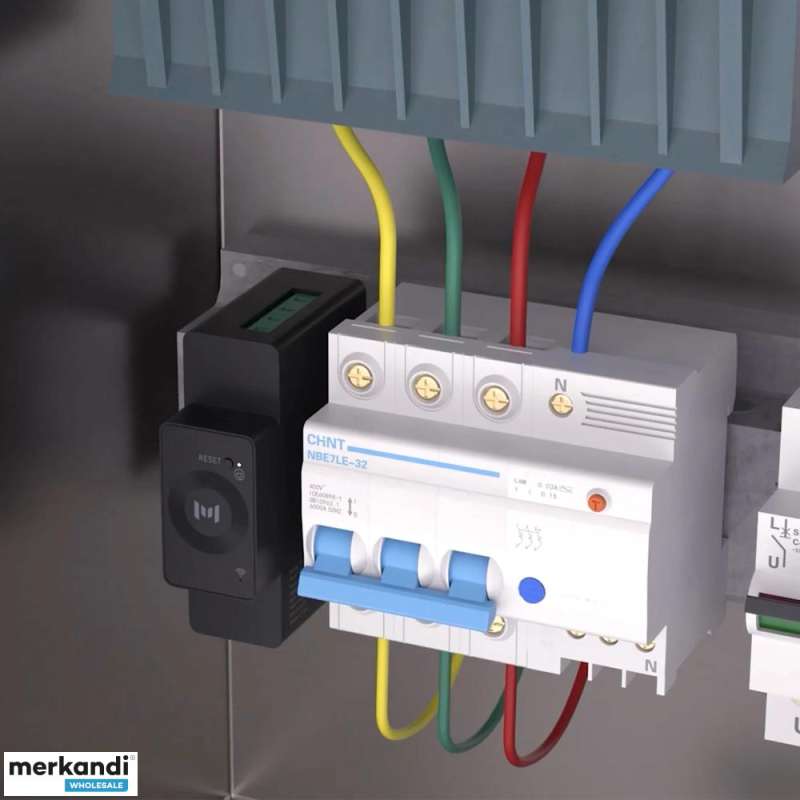

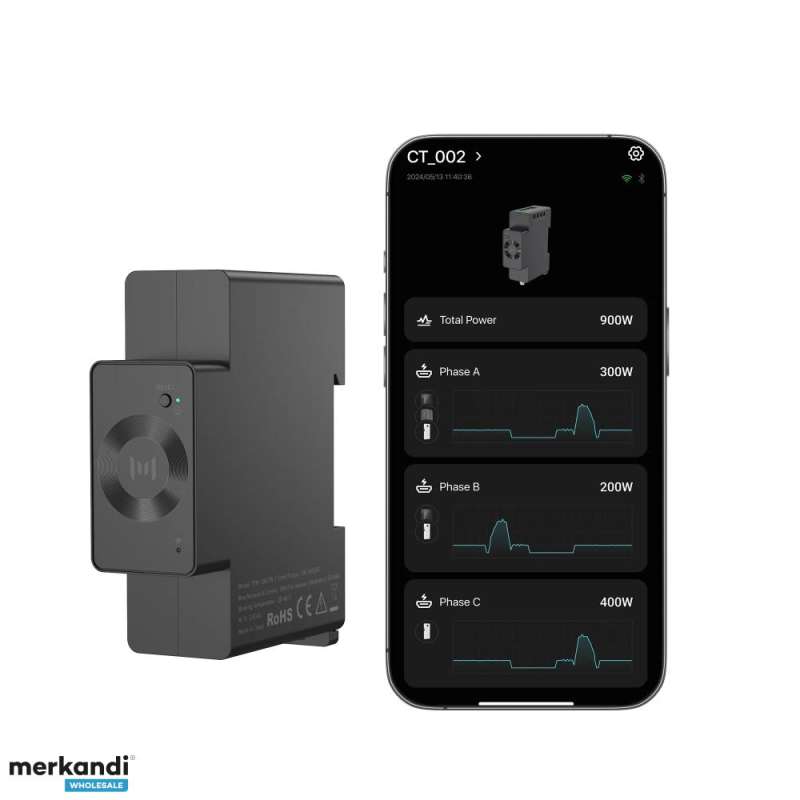

The CT002 is designed for easy DIN rail installation in most household electrical panels. It is recommended that you hire a professional electrician for the installation. Once installed, it connects via the Marstek app for real-time monitoring and smart energy management.

? Compatibility
The CT002 is fully compatible with the following Marstek energy storage systems:

Venus
Jupiter
Saturn

?️ Guarantee
Product covered by a 10-year manufacturer's warranty.

---
