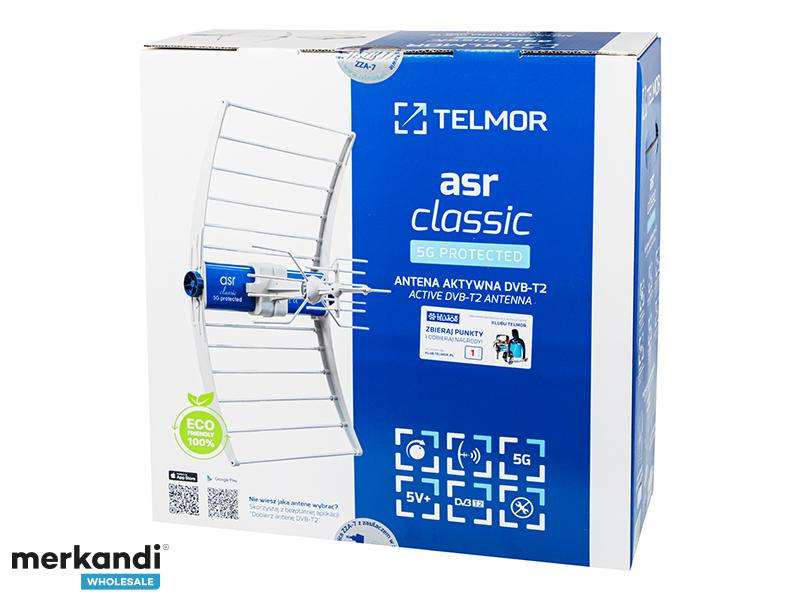

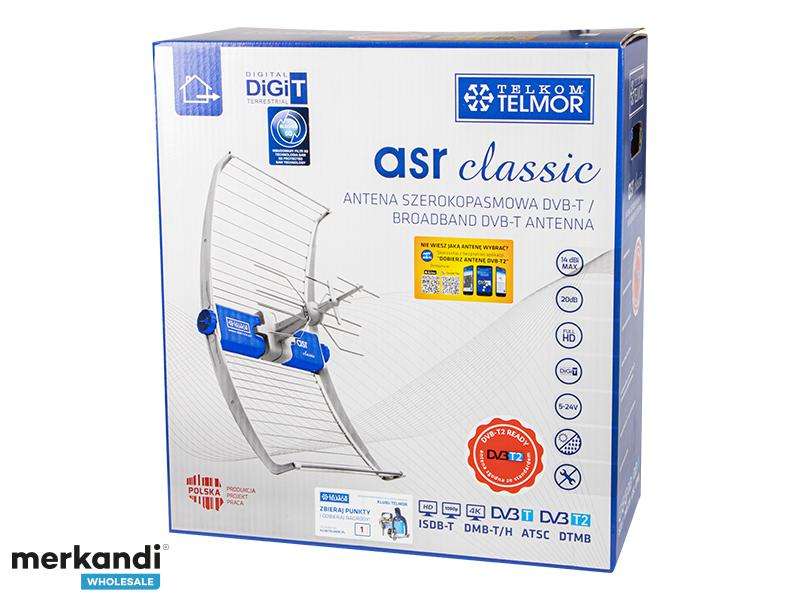

2672# Antenna for Wideband TV ASR Classic 5G P20
₹4,695.68
/piece
price excl. VAT
- Minimal order
- 1 pieces
- Available quantity
- 1 piece
- Country
- Poland
- Grade
- New
- SKU:
- BLO-2672#
- EAN:
- 5903953010629
Message Phone call
2672# Antenna for Wideband TV ASR Classic 5G P20 - description
Modern wideband antenna dedicated for receiving digital television signals DVB-T/T2. The 5G Protected version has a very advanced bandpass filtering implemented, which eliminates interfering out-of-band signals (5G, LTE 700, LTE 800, CDMA 450, GSM 1800, etc.). The aforementioned out-of-band signals (especially coming from masts and phones) can cause overdriving of amplifiers and other active elements.
Features:
- Adapted for receiving signals of digital terrestrial television DVB-T/T2
- Includes built-in bandpass filter 470-694MHz
- Protects DVB-T/T2 signals from interference from 5G, LTE, and GSM
- Has very high energy gain, and built-in ultra-low-noise amplifier
- Aesthetic and durable construction
- Power supply for the amplifier with direct current in the range of 5…12V (included 12V power supply with power splitter ZZA-7)
Specifications:
- Operating band: 470-694MHz
- Gain: 14dBi
- Amplifier gain: max 22dB
- Polarization: Horizontal (H)
- Power supply: 5 - 12V
- Output Connector Type: „F” socket
- Dimensions of deployed antenna: 820 x 455 x 220mm
- Net weight: 2.48kg
Contents of the set:
- Amplifier
- F connector

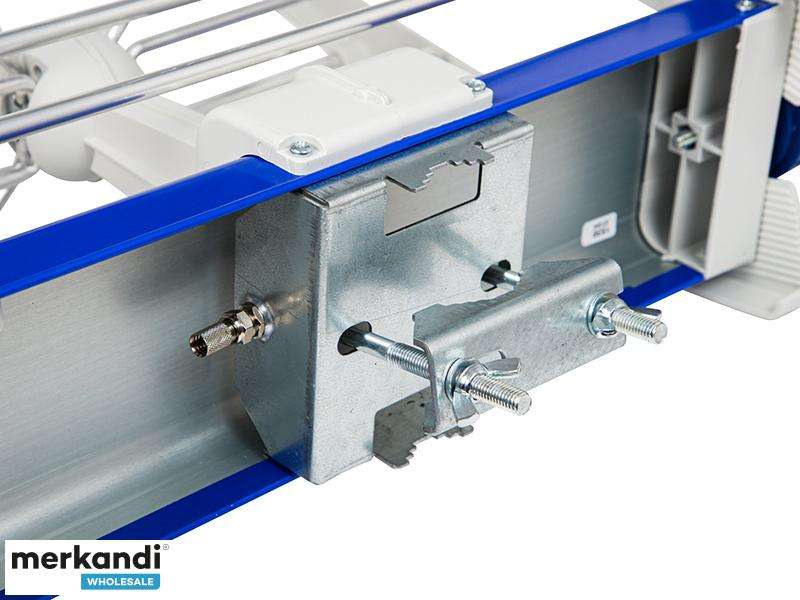

- Clamp.
